Front Camber Adjusting Bolt Kit
Adds +/- 1.5 Degrees camber SPF4351-12K 1 $38.00

Kit, camber adjustment

Camber Adjusting Bolt Kit

Adds +/- 1.5 Degrees camber

Camber Bolt Kit 12mm

  • Fitting Position: Front
  • Fitting Position: Rear
  • Part of kit: (x)
  • Front
  • SPF4351-12K
  • 1
  • 2 Bolts
  • $38.00
  • More Info
  • BUY NOW

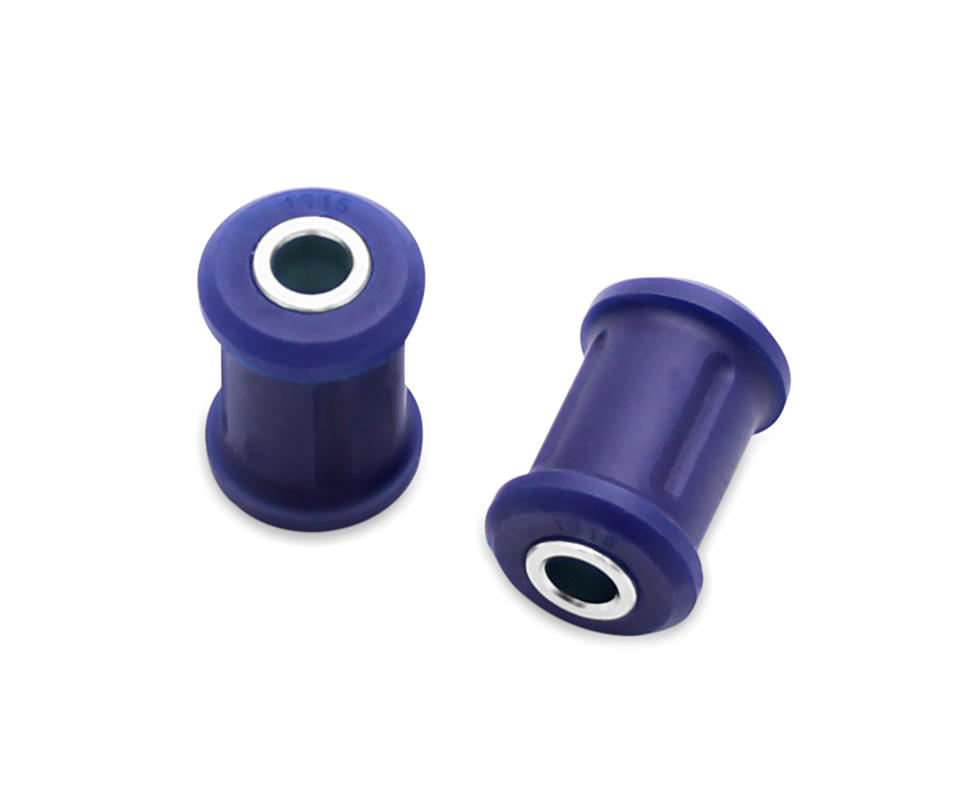

Front Control Arm Lower-Inner Front Bush Kit
SPF1915K 1 $43.00

Control Arm-/Trailing Arm Bush

Control Arm Lower-Inner Front Bush Kit

Bush OD 30mm

Tube 19x12.3x54

  • Fitting Position: Front
  • Fitting Difficulty: difficult
  • Fitting Time [min.]: 120
  • Axle alignment required after fitting
  • Part of kit: (x)
  • Front
  • SPF1915K
  • 1
  • 2B,2T
  • $43.00
  • More Info
  • BUY NOW

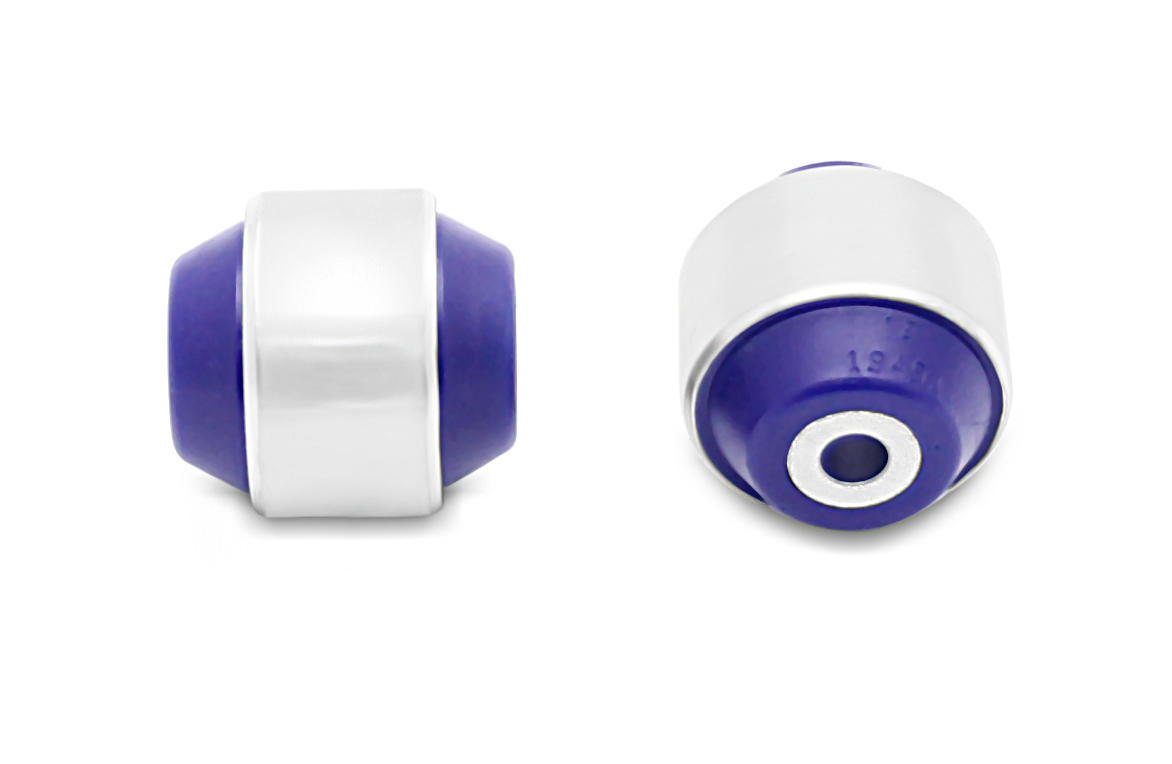

Front Control Arm Lower-Rear Bush Kit
Standard Replacement SPF4685K 1 $118.00

Control Arm-/Trailing Arm Bush

Control Arm Lower-Rear Bush Kit

Standard Replacement

  • Fitting Time [min.]: 150
  • Fitting Difficulty: difficult
  • Axle alignment required after fitting
  • Fitting Position: Front
  • Part of kit: (x)
  • Front
  • SPF4685K
  • 1
  • 2B,4SP,2T
  • $118.00
  • More Info
  • BUY NOW

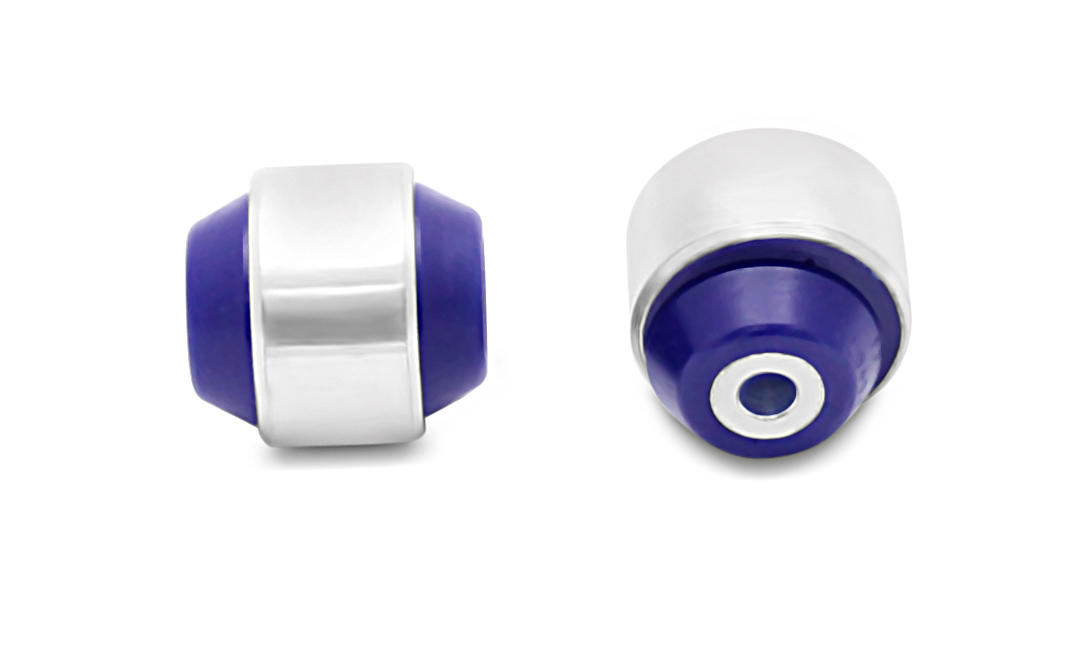

Front Control Arm Lower-Rear Bush Kit - Double Offset
Alignment Correction. Caster Adjustment SPF4687K 1 $118.00

Control Arm-/Trailing Arm Bush

Control Arm Lower-Rear Bush Kit - Double Offset

Alignment Correction. Caster Adjustment

Vehicle Application Information:

  • up to 2 Degrees Caster Adjustment available

A Double Offset kit is used for enhanced handling performance and will deliver positive caster to both sides of the vehicle.
The vehicle will have improved directional stability, crisper, more responsive steering and improved 'return to centre' feel.
This is a non tyre wearing geometry change that has a substantial effect on a vehicles handling characteristics.

Follow the installation instructions and enjoy the results!

Vehicle Application Information:

  • Performance Handling Kit
  • Fitting Position: Front
  • Axle alignment required after fitting
  • Fitting Time [min.]: 150
  • Fitting Difficulty: difficult
  • Part of kit: (x)
  • Front
  • SPF4687K
  • 1
  • 2B,4SP,2T
  • $118.00
  • More Info
  • BUY NOW

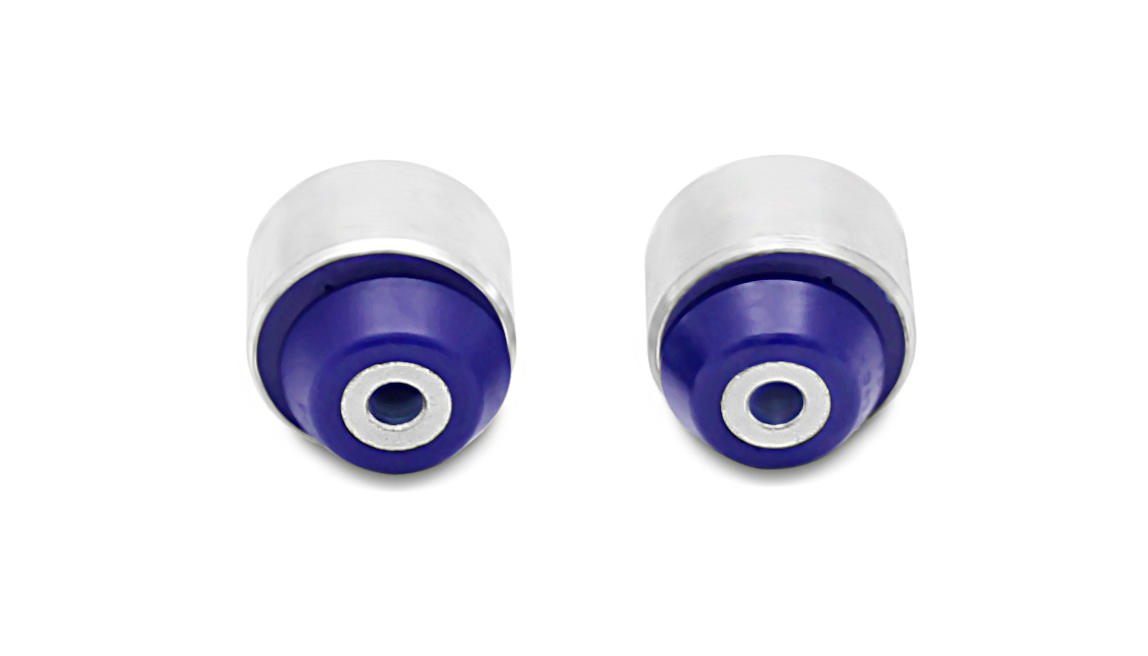

Front Control Arm Lower-Rear Bush Kit - Single Offset
Alignment Correction. Caster Adjustment SPF4686K 1 $118.00

Control Arm-/Trailing Arm Bush

Control Arm Lower-Rear Bush Kit - Single Offset

Alignment Correction. Caster Adjustment

Vehicle Application Information:

  • 1 Degree Caster Adjustment available

Use this kit to rectify a steering pull after a vehicle has been aligned to the manufacturer's specifications.
Supplied with an offset bush to be fitted to the passenger side and a standard bush for the driver's side, these kits stagger the caster or setback by repositioning the ball joint slightly forward in the chassis.
This is a non tyre wearing geometry change that has a substantial effect on a vehicles ability to track straight and other handling characteristics.
Follow the installation instructions and the problem is solved.

Vehicle Application Information:

  • Steering Pull Correction Kit
  • Fitting Position: Front
  • Fitting Time [min.]: 150
  • Axle alignment required after fitting
  • Fitting Difficulty: difficult
  • Part of kit: (x)
  • Front
  • SPF4686K
  • 1
  • 2B,4SP,2T
  • $118.00
  • More Info
  • BUY NOW
Front Sway Bar Link Kit - Heavy Duty Adjustable
TRC1025 1 $130.00

Sway Bar Stabiliser Kit

Sway Bar Link Kit - Heavy Duty Adjustable

10mm Ball Joint Adjustable Link

Minimum Length 75 mm - Maximum Length 85 mm

Designed to maximise the benefit of Roll Control Adjustable Sway Bars and be used in place of that hard to find O.E link.

Features & Benefits

  • 6060-T5 Alloy Link
  • Ball for low friction and long life
  • Spanner provision for on-car adjustment
  • Eliminates sway bar link flex
  • Allows for neutral sway bar positioning
  • Maximises all positions on adjustable Sway Bars
  • Suits lowered or raised vehicles

SuperPro Tip - To get the best out of these adjustable link kits, please read the fitting instructions prior to installation.

  • Fitting Position: Front
  • Fitting Difficulty: moderate
  • Fitting Time [min.]: 60
  • Part of kit: (x)
  • Front
  • TRC1025
  • 1
  • 2 Links
  • $130.00
  • More Info
  • BUY NOW

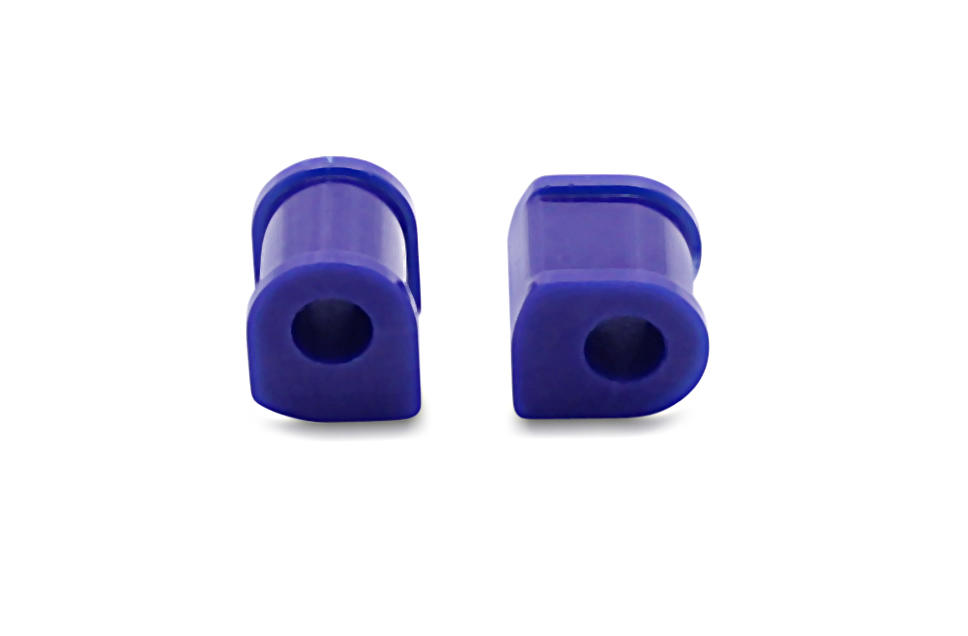

Front Sway Bar Mount Bush Kit
Measure bar diameter 18, 20, 22mm available SPF2683-20K 1 $32.00

Sway Bar Bush Kit

Sway Bar Mount Bush Kit

Measure bar diameter 18,20,22mm available

  • Fitting Time [min.]: 60
  • Fitting Difficulty: easy
  • Fitting Position: Front
  • Part of kit: (x)
  • Front
  • SPF2683-20K
  • 1
  • $32.00
  • More Info
  • BUY NOW
Front Sway Bar Mount Bush Kit
Measure bar diameter 18, 20, 22mm available SPF2683-22K 1 $32.00

Sway Bar Bush Kit

Sway Bar Mount Bush Kit

Measure bar diameter 18,20,22mm available

  • Fitting Time [min.]: 60
  • Fitting Difficulty: easy
  • Fitting Position: Front
  • Part of kit: (x)
  • Front
  • SPF2683-22K
  • 1
  • $32.00
  • More Info
  • BUY NOW
Rear Camber Adjusting Bolt Kit
Adds +/- 1.5 Degree Camber SPF4351-12K 1 $38.00

Kit, camber adjustment

Camber Adjusting Bolt Kit

Adds +/- 1.5 Degree Camber

Camber Bolt Kit 12mm

  • Fitting Position: Front
  • Fitting Position: Rear
  • Part of kit: (x)
  • Rear
  • SPF4351-12K
  • 1
  • 2 Bolts
  • $38.00
  • More Info
  • BUY NOW
